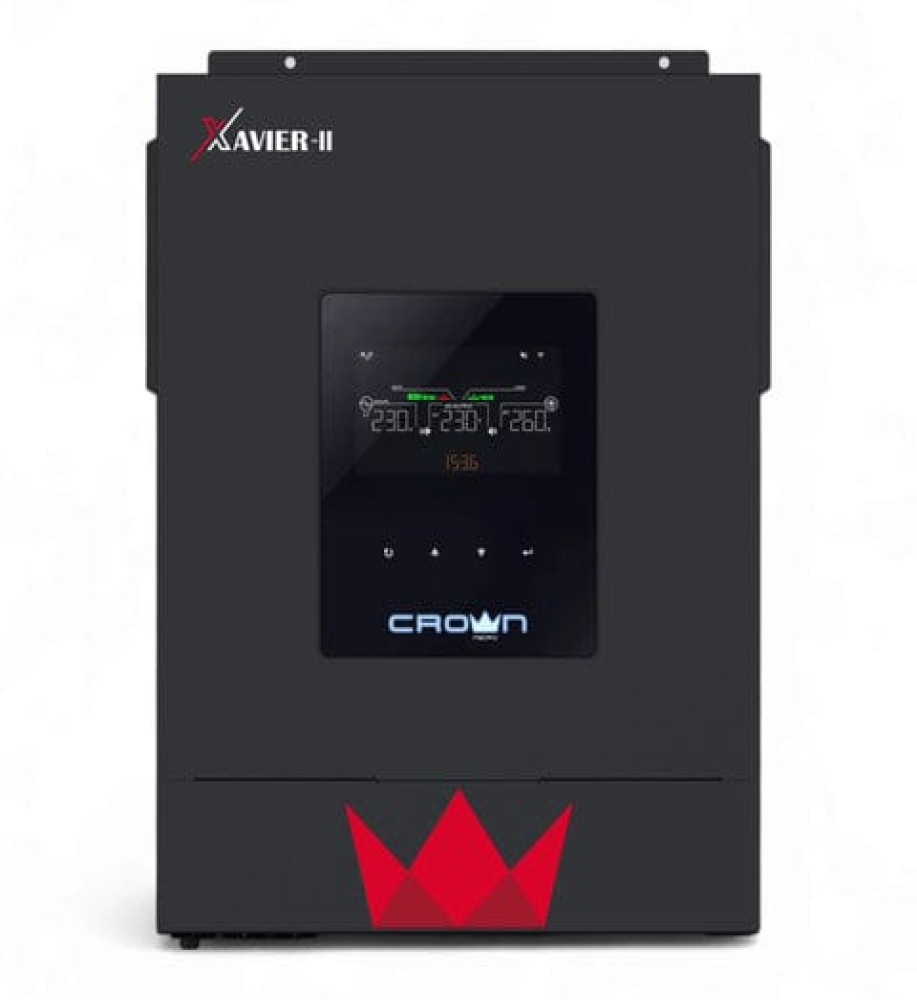

Crown Xavier II 4 kW Hybrid Solar Inverter
- Pure sine wave solar MMPT based inverter
- Built-in BMS and Wi-fi
- RGB Crown logo
- Off-Grid hybrid inverter
- LCD with touch Pad
- Feed-in to the Grid
Model: Xavier‑4 kW (sometimes Xavier II)
Rated Output: 4 000 W (4 kVA), single-phase
Surge Capability: 7 200 VA (×1.8), allowing appliance startup
AC Output: Pure sine wave, 230 VAC ±5%, 50/60 Hz auto-sensing
Efficiency (Peak): ~93%
Battery Input: 24 V DC nominal (some variants support 48 V)
Solar Charger (MPPT): Built-in, supports up to 5 000 W PV; voltage range 60–450 V, max OC 500 V, 120 A charge
AC Charging: Up to 100–120 A
Transfer Time: 10ms (PC mode), 20ms (home appliances)
Display & Connectivity: 5″ LCD touchscreen, USB/RS‑232/RS‑485 (optionally CAN/RS‑485), detachable panel
Alarms & Protections: Overload, short-circuit, over/under voltage, thermal, fan failure, PV overcurrent
Dimensions & Weight: ~107 × 322 × 420 mm; ~9.5 kg
Operating Temp / Humidity: –10 °C to 50 °C; 5–95% RH non-condensing
Ingress Rating: IP21 – indoor use only
